GHD-V-NC-2550-1 (Vertical NC Drilling Machine)

Features

GHD-V-NC-2550-1

�  NC numerical control GHD-V-NC2550-1 works with PLC & HMI touch panel operator
   interface
� One pair of drilling spindles, front & rear double spindles, move up & down along vertical
   bridge automatically
� Front & rear spindles forward & backward feeding powered by pneumatic
� Drilling holes position is registered automatically
� Drilling spindles move from one to next holes positions automatically
� Process up to 5000 x 2500 mm glass
� Holes positioning accuracy up to 0.50 mm
� Concentricity precision of front & rear drills up to 0.10 mm
� Drilling spindles up & down movement driven by servo motor
� Glass horizontal traveling driven by servo motor
� Spindles rotational speed regulated by frequency convertor
� Center core drill water cooling

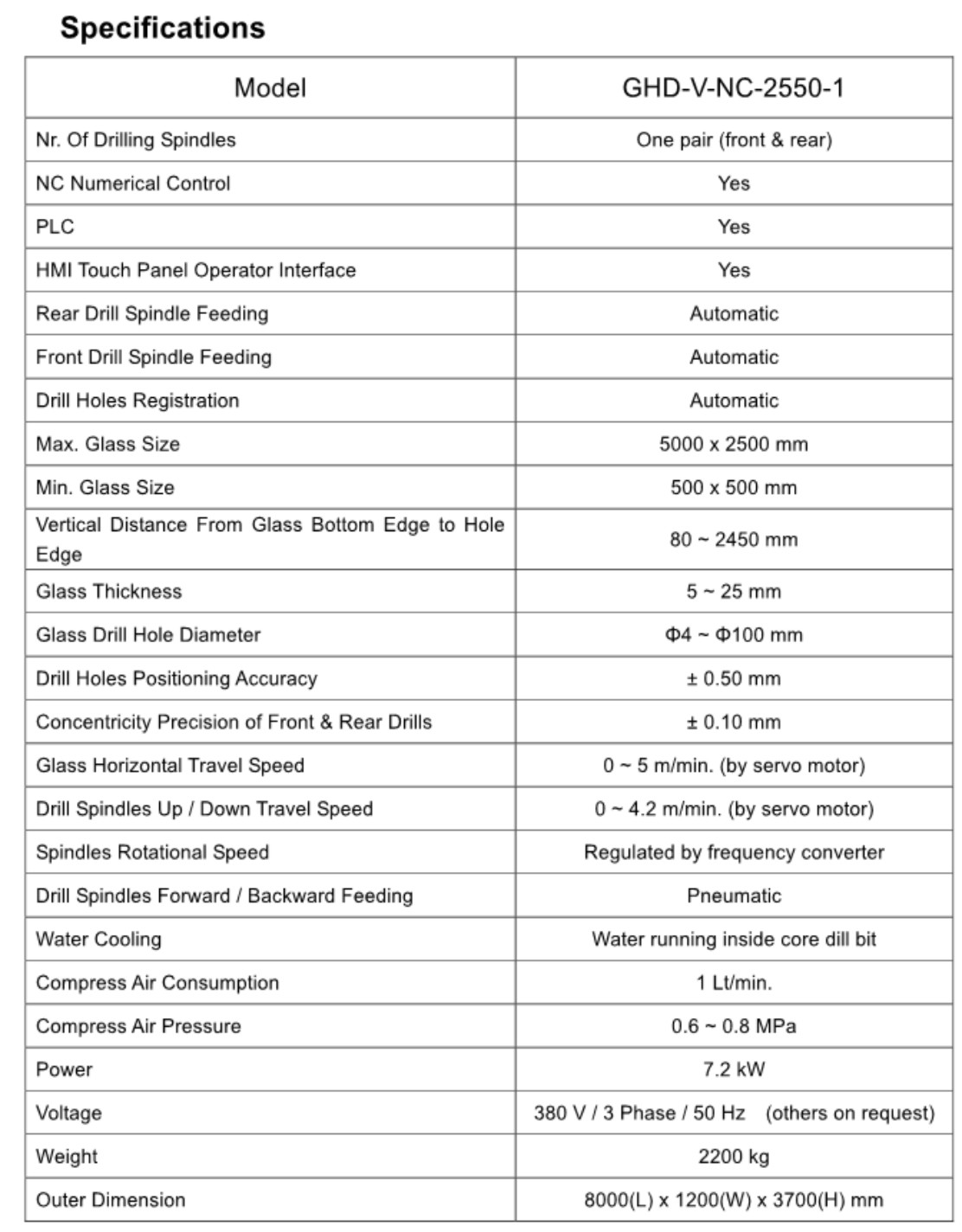

specif

Remarks
1. Custom design is on request.
2. All data, information and images contained in this document are       subject to change without further notice.
